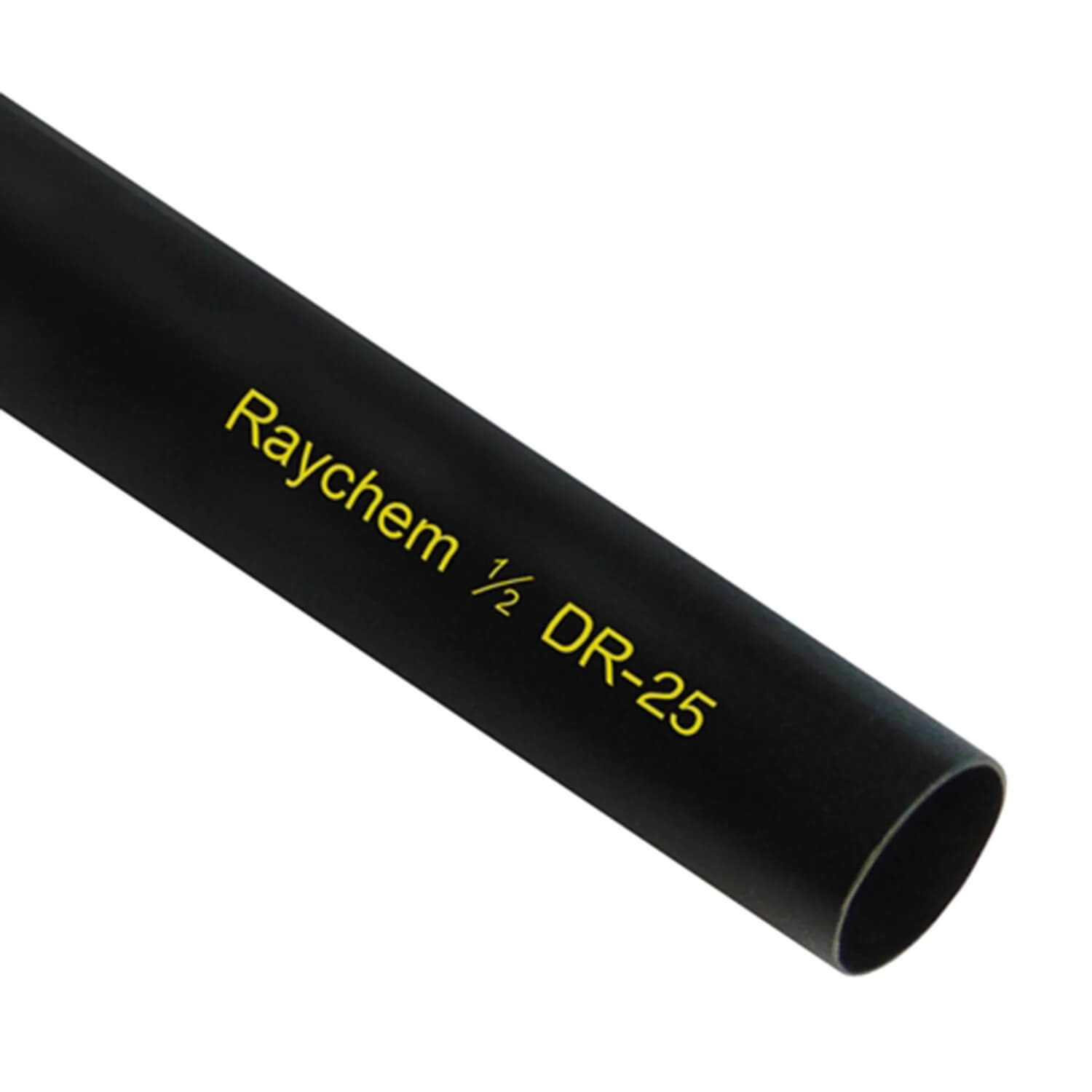

Raychem DR-25 Heat Shrink: The Ultimate Technical Guide for High-Performance Wiring
In the demanding world of high-performance electrical engineering, Raychem DR-25 is widely recognized as the industry baseline, not just an upgrade. Whether it is the extreme vibration of a Formula 1 engine bay or the harsh chemical exposure of military ground vehicles, DR-25 provides the essential defense for mission-critical wire harnesses.
As a manufacturer with 20 years of expertise, we offer factory-direct supply and customization options to meet your specific project needs. We understand that in extreme environments, the quality of your protection material determines the reliability of your entire system.
1. The Science of Radiation Cross-linking: Performance from -75°C to +150°C
The superior performance of DR-25 is rooted in its unique material composition: a radiation cross-linked elastomer. This process gives the material “elastic memory,” allowing it to be expanded, “frozen,” and then recovered precisely to its original diameter when heat is applied.
- Thermal Range: Rated for continuous operation from -75°C to +150°C.
- Installation Requirements: While it begins shrinking at 150°C, a minimum temperature of +175°C is required for full recovery.
- Fluid Resistance: Immune to aviation fuel (JP-8), diesel, hydraulic fluids (H515), and lubricating oils.
2. Performance Comparison: Why DR-25 is the Professional Choice
The following table highlights the technical gap between professional-grade DR-25 and standard commercial materials.
| Performance Feature | Raychem DR-25 | Standard PVC/Polyolefin |
|---|---|---|
| Material Type | Radiation Cross-linked Elastomer | Thermoplastic |
| Temp Range | -75°C to +150°C | -40°C to +105°C |
| Fluid Resistance | Excellent (Fuel/Oil Resistant) | Poor (Degrades in Oil) |
| Flexibility | Remains soft and pliable | Becomes stiff or brittle |
3. The System 25 Philosophy: Integrated Environmental Sealing
Professional “Race-Spec” wiring is an integrated ecosystem known as the System 25 Philosophy. To achieve total environmental sealing, DR-25 must be used as part of a product trio:
- DR-25 Jacket: The chemical and abrasion-resistant shell.
- -25 Molded Shapes: Heat-shrink boots that protect connector backshells and provide strain relief.
- S1125 Adhesive: The “seal” that prevents moisture “wicking” and fluid ingress.
By utilizing Concentric Twisting (a 1-6-12 layer structure), engineers can create a harness that is as flexible as a rope and highly resistant to EMI, ensuring that mission-critical sensors (like crank or cam position) deliver clean signals.
Frequently Asked Questions (FAQ)
Q: Can I use standard PVC wire with DR-25?
A: No. PVC melts above 105°C. Since DR-25 requires 175°C for recovery, the wire insulation will melt before the tubing shrinks. We recommend Spec 55 (Tefzel) wire.
Q: What is the weight saving with DR-25-TW?
A: The Thin Wall (TW) version reduces wall thickness by approximately 40%, offering a 30% weight saving per meter, ideal for F1 and Aerospace.
Ready to Enhance Your Harness Reliability?
Don’t let inferior protection be the weak point of your project. With 20 years of factory-direct manufacturing experience, we provide the highest military and motorsport grade solutions.
