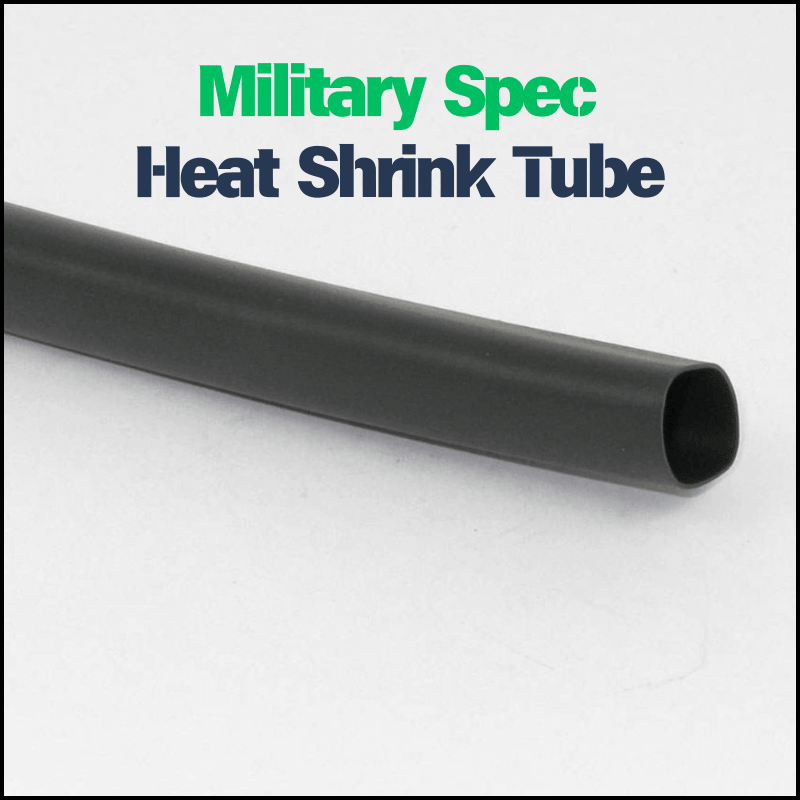

135 Military Spec Heat Shrink Tubing

The ZH-135 Series is a high-temperature resistant polyolefin military spec heat shrink tubing, manufactured using eco-friendly flame retardant materials and cross-linked by high-energy electron beam technology. With excellent electrical, physical and chemical properties, it is widely used for insulation, strain relief and identification of wire harnesses, cables and connectors in industrial and military applications.

Key Features & Technical Advantages :

Electron Beam Crosslinked Construction

Flame Retardant & UL 224 Compliant

Chemical Resistance (Fuel / Oil / Hydraulic Fluid)

Operating Temperature Range: -55°C to +135°C

Size:

Applications :

Military & Defense Ground Vehicle Harness

Aerospace & Aviation Cable Protection

Motorsport & Racing Wiring Loom

Railway & Rolling Stock

Industrial Automation & Motor Wiring

FAQ :

Q1: What does “military-grade heat shrink tubing” actually mean?

The term “military-grade” refers to heat shrink tubing that meets or is designed to the performance requirements of MIL-DTL-23053, the U.S. Department of Defense specification for heat-shrinkable insulation sleeving. This standard defines requirements across multiple classes (Class 2, 5, 11, etc.) covering materials such as crosslinked polyolefin, PTFE, and elastomeric compounds.

For a product to be considered military-grade, it must demonstrate:

• Extended temperature performance (typically -55°C to +135°C or beyond)
• Chemical resistance to military fluids including JP-8 jet fuel, MIL-H-5606 hydraulic fluid, and Skydrol aviation hydraulic fluid
• Flame retardancy per UL 224 or equivalent
• Physical toughness — resistance to abrasion, cut-through, and impact
• Dimensional stability — no cold flow or deformation under sustained load

TubeBoot ZH-135 is engineered to meet or exceed these performance benchmarks as an MIL-DTL-23053/5 equivalent, making it a cost-effective alternative to Raychem DR-25 for military procurement and OEM harness programs.

Q2: What military and aerospace applications is ZH-135 designed for?

TubeBoot ZH-135 military-grade heat shrink tubing is designed for use in the most demanding wiring environments encountered in defense and aerospace programs:

• Ground combat vehicles — HMMWV, MRAP, M1 Abrams, Bradley IFV and similar platforms, where wiring is exposed to engine heat, JP-8 fuel, and constant vibration
• Rotary and fixed-wing aircraft — helicopter airframe wiring, avionics bay cable management, and engine compartment harnesses subject to Skydrol and hydraulic fluid exposure
• Naval shipboard systems — salt fog, humidity cycling, and hydrocarbon exposure in machinery spaces
• Missile and munitions electronics — low-outgassing requirements, thermal cycling resistance
• Field repair operations — robust shrink performance with minimal tooling, critical for forward-deployed maintenance crews
• Motorsport (F1 / WRC / Le Mans) — the same extreme fluid and thermal resistance demanded by military programs applies directly to competition motorsport harness environments

Q3: How does ZH-135 compare to Raychem DR-25 for military harness programs?

Raychem DR-25 has long been the benchmark for military and motorsport heat shrink, rated at -75°C to +150°C with excellent fluid resistance. TubeBoot ZH-135 delivers equivalent performance across the most critical parameters — including JP-8 fuel resistance, Skydrol resistance, UL 224 flame retardancy, and electron beam crosslinked construction — at a 40–60% lower cost through factory-direct supply.

For procurement programs where full MIL-DTL-23053 listing is a contract requirement, we recommend discussing your specific qualification requirements with our technical team. For OEM harness builders, aftermarket repair operations, and programs where performance equivalence (rather than formal listing) is sufficient, ZH-135 is a fully capable drop-in alternative.

Free qualification samples and third-party test reports (SGS / TÜV) are available on request.

Q4: Is ZH-135 resistant to JP-8 jet fuel, Skydrol, and other military-specification fluids?

Yes. TubeBoot ZH-135 is formulated specifically to resist the chemical fluids most commonly encountered in military and aerospace environments:

Immersion testing data and chemical resistance certificates are available for OEM qualification programs. Contact us with your specific fluid environment and test method (per MIL-STD-202 or equivalent) for custom documentation.

Q5: What certifications and documentation can TubeBoot provide for defense procurement?

We understand that military and aerospace supply chain programs require rigorous documentation. TubeBoot can provide the following for ZH-135 military-grade heat shrink tubing:

• Certificate of Conformance (CoC) — per-lot, with material composition declaration
• Material Test Report (MTR) — physical, electrical, and thermal test data
• RoHS 2.0 & REACH SVHC Compliance Declaration
• Third-Party Test Reports — SGS / TÜV / Intertek available for OEM qualification
• UL 224 Component Recognition documentation
• FAI (First Article Inspection) support — available for long-term supply programs
• ITAR / EAR compliance declaration — available on request for US defense programs

For programs requiring formal MIL-DTL-23053 qualification listing, contact our technical team to discuss the qualification roadmap and timeline.
