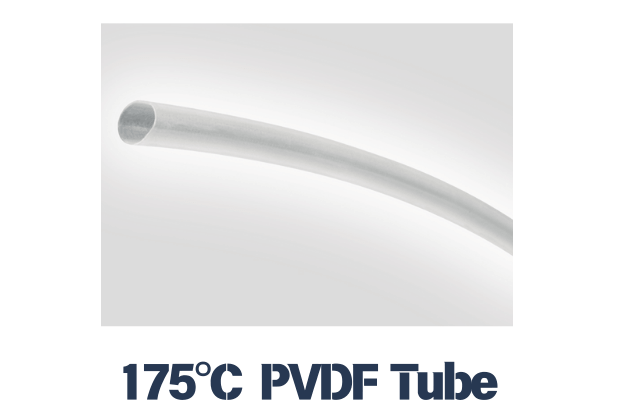

ZH-KT-175
175 PVDF Heat Shrink Tubing
It is a 175°C high-temperature transparent PVDF heat shrink tubing, specially designed for demanding applications in aerospace and military fields.
Features and benefits
- 30% longer lifespan (250°C aging tested)
- ≤0.3% water absorption for humid environments
- Complies with GJB7270-2011 military standards
- Multiple sizes available
- Cost-effective with short lead times
Description
The ZH-KT175 Series is a 175°C high-temperature KYNAR heat shrink tubing made of semi-rigid PVDF material, designed for extreme temperature environments. With outstanding abrasion and chemical resistance, its performance matches top international brands, making it ideal for high-end industrial applications. Certified to SAE AMS-DTL23053/8 and other stringent standards.
Key Features:
- 175°C continuous rating (300°C peak)
- 2:1 shrink ratio for reliable installation
- VW-1 flame rating, UL224 600V certified
- ≥28kV/mm dielectric strength, industry-leading
- ≥45MPa tensile strength, exceeds requirements
- Clear/black options for component visibility
Size:
FAQ:
1) What is high temperature transparent tubing used for?
A: It is used where heat resistance and visual inspection, identification, or marking visibility are both important.
2) Does transparency help with identification or inspection?
A: Yes. Transparent tubing helps maintain visibility of underlying marks, colors, or components while still providing protection.
3) What temperature range can it handle?
A: The exact range depends on the material family, but this type of tubing is selected for higher-temperature applications than standard general-purpose sleeves.
4) Can you supply different sizes or wall thicknesses?
A: Yes. Size and wall thickness options can usually be matched to the target application and protection need.
