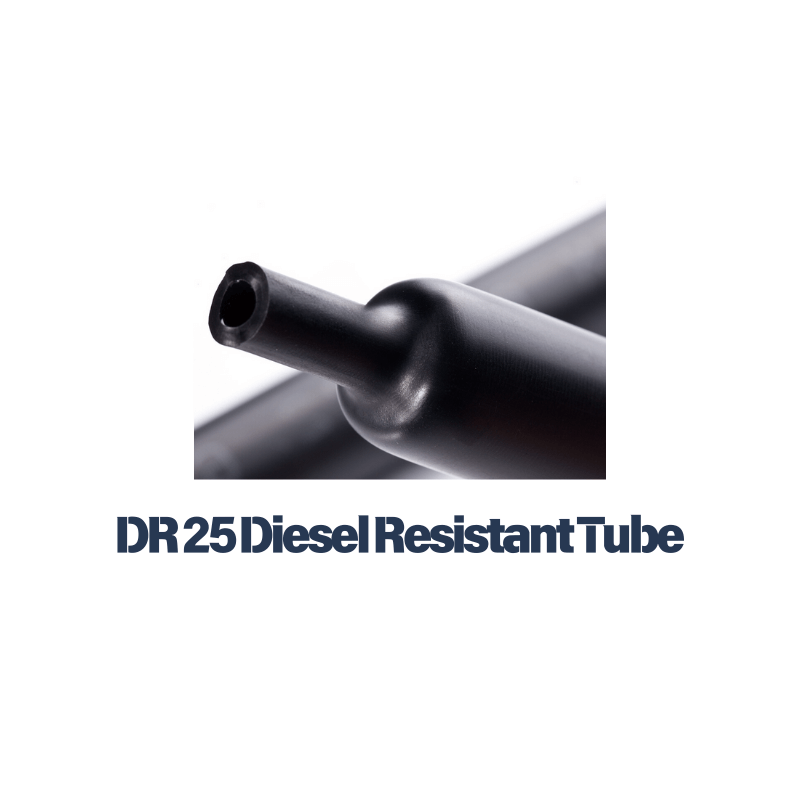

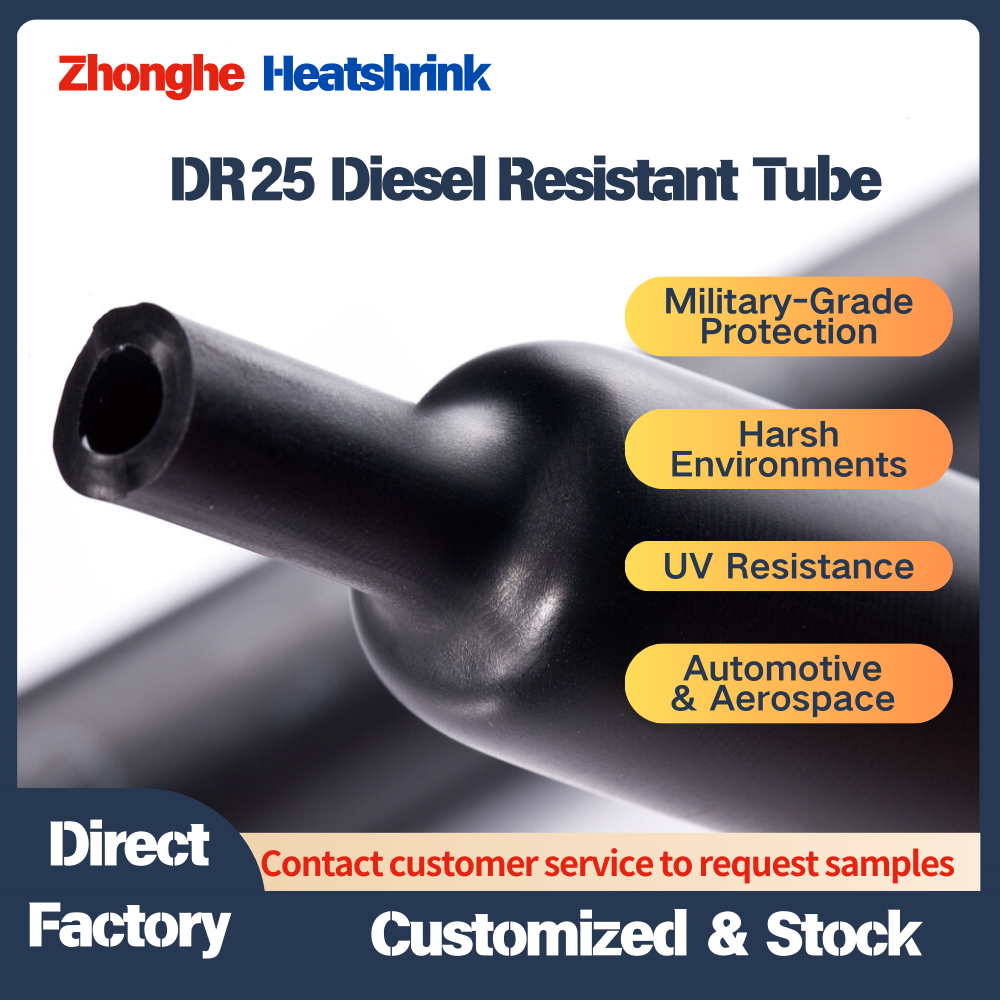

ZH-DR-25
Diesel Resistant Tubing
Used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation.
Features and benefits
Flexible, high performance elastomeric heat shrink tubing
Used in aerospace, defence , railway and automotive applications
Resistant to diesel fuel, aviation and hydraulic fluids
Description
Engineered for exceptional resistance to high-temperature fluids and long-term heat exposure, the DR25 heat shrink tubing is designed to withstand aviation and diesel fuels, hydraulic fluids, and lubricating oils. This makes it an ideal choice for military ground vehicle cable harnesses and motorsport applications, where durability and performance are critical.
When paired with System 25 heat-shrinkable molded shapes and S1125 high-performance adhesive, the DR25 tubing forms a complete, reliable cable harness system for demanding environments.
Key Features:
- Shrink Ratio: 2:1
- Minimum Shrink Temperature: 150°C [302°F]
- Minimum Full Recovery Temperature: 175°C [347°F]
- Operating Temperature Range: -75°C to 150°C [-103°F to 302°F] (compliant with VG 95343 Part 5 Type D)
- Available Colors: Black
