ZH-KT-150

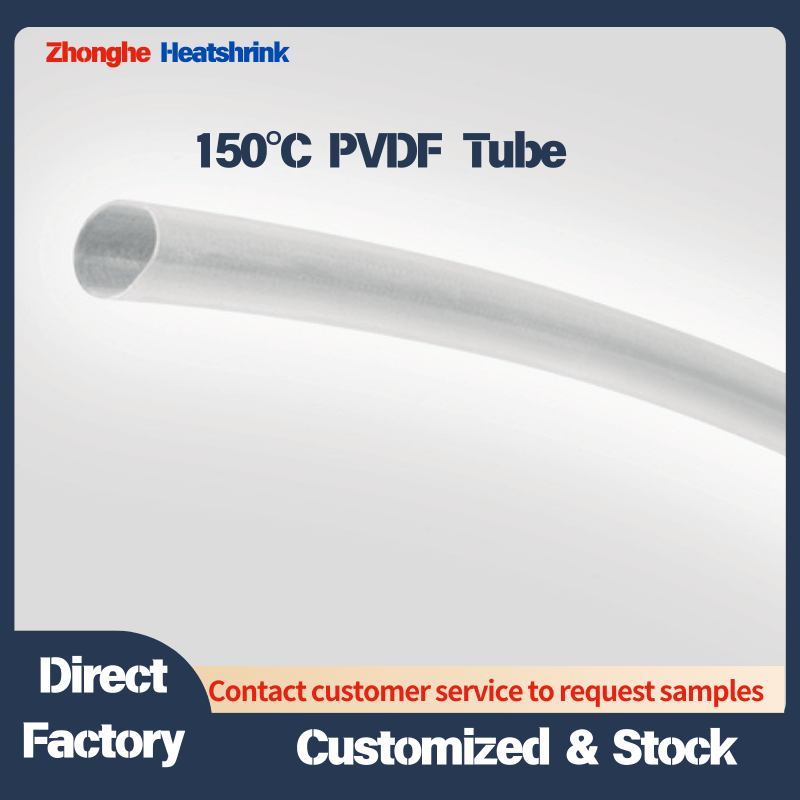

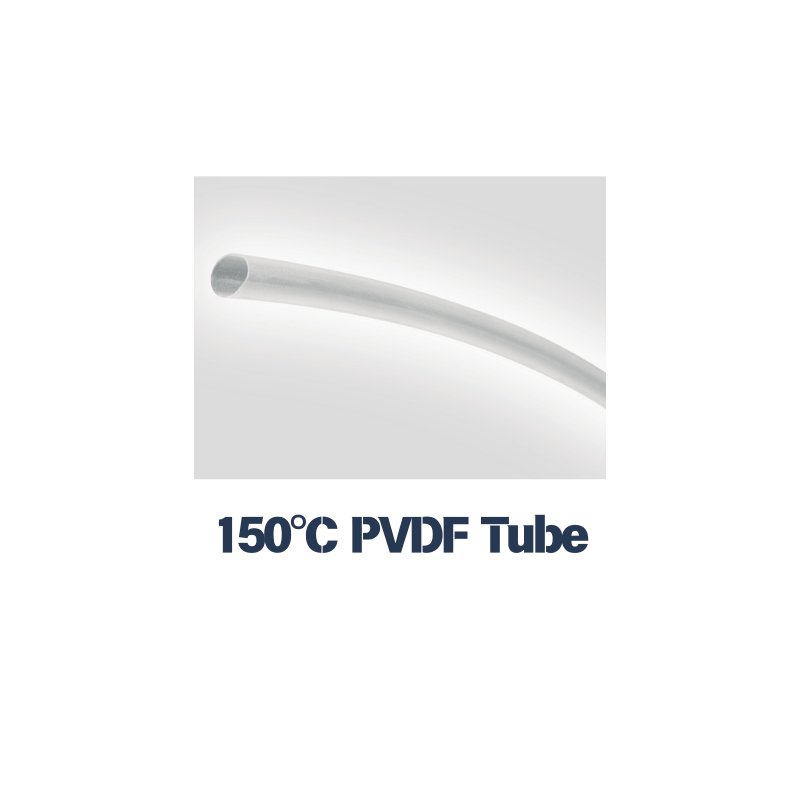

150°C PVDF Heat Shrink Tubing
It is a 150°C high-temperature transparent PVDF heat shrink tubing, specially designed for demanding applications in aerospace and military fields.
特点和优点
- Military-grade quality, GJB7270-2011 certified
- Extended lifespan (225°C aging tested)
- ≤0.3% water absorption for humid environments
- Excellent chemical resistance
- Multiple standard sizes available
描述
The ZH-KT150 Series is a 150°C high-temperature transparent PVDF heat shrink tubing, specially designed for demanding applications in aerospace and military fields. Manufactured with military-grade PVDF material, it offers exceptional mechanical strength and 100% visibility, certified to SAEAMS-DTL-23053/18 with industry-leading performance.
Key Features:
- Transparent PVDF material maintains marker visibility
- 150°C temperature resistance (-55°C to +150°C range)
- 2:1 shrink ratio for tight conformability
- VW-1 flame rating, UL224 certified
- 600V insulation rating, ≥20kV/mm dielectric strength
- Superior abrasion and chemical resistance

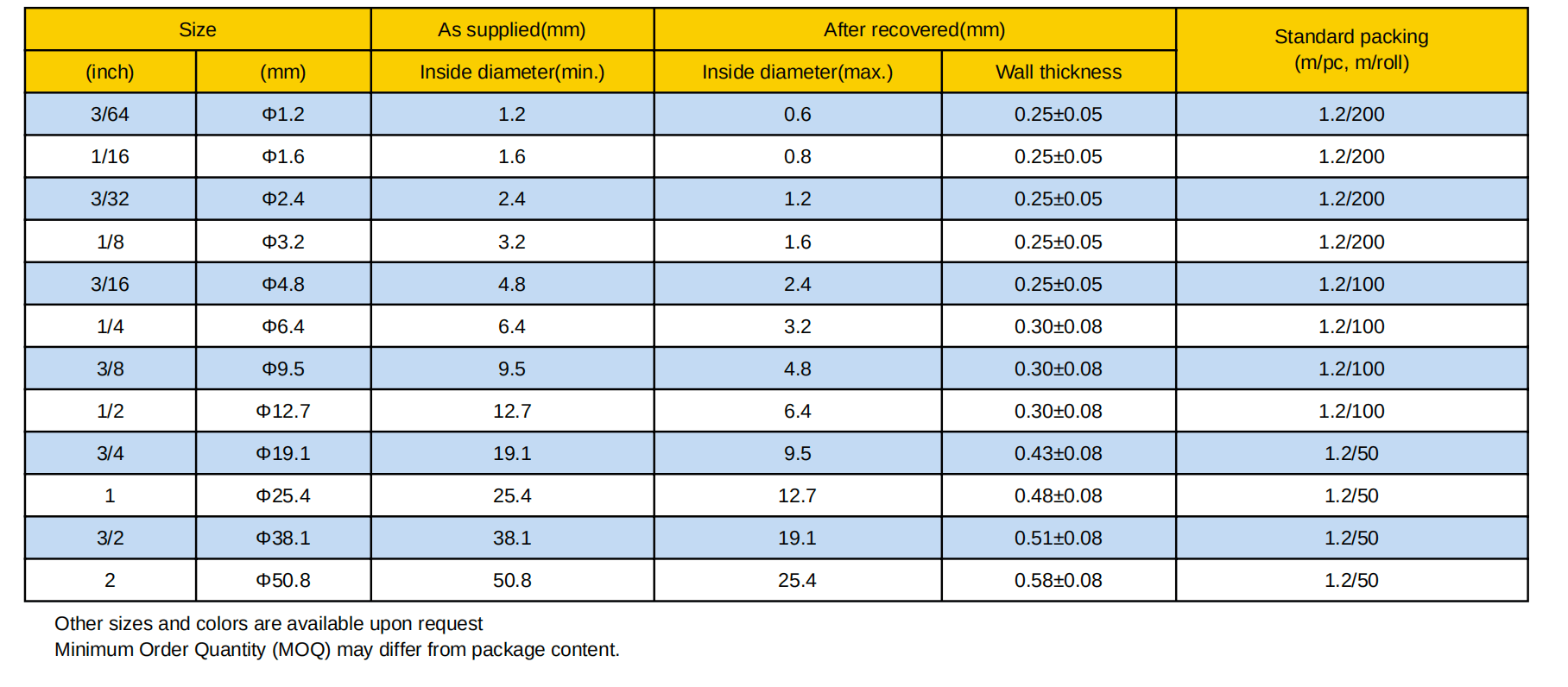

Size:
