ZH-M35

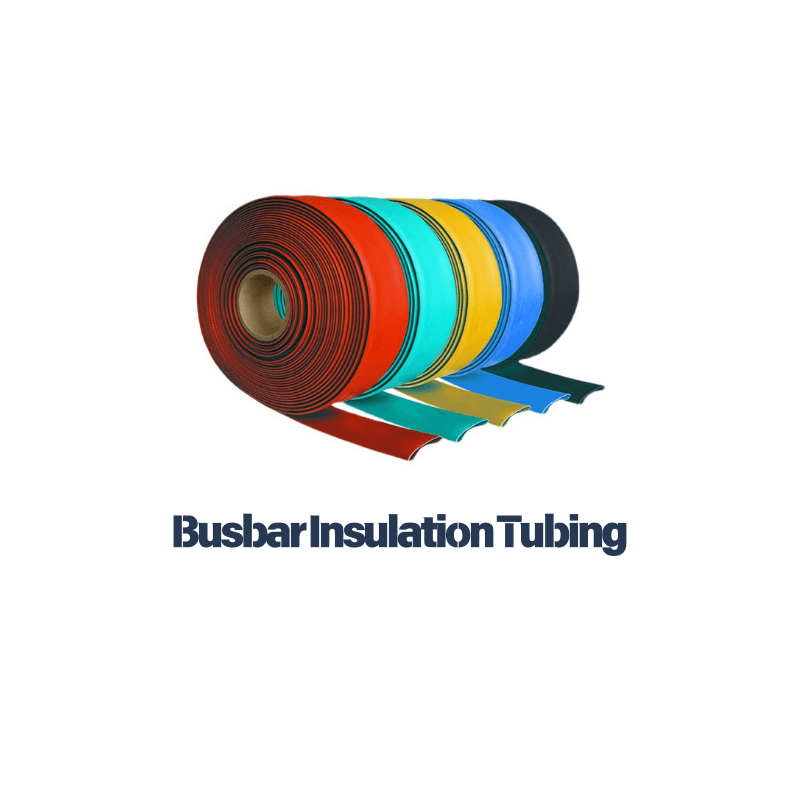

Busbar Insulation Heat Shrink Tubing
It is an insulated heat shrink tubing specially designed for busbar applications.
特点和优点
- Operating range -55°C to +125°C
- ≥20kV/mm dielectric strength
- Uniform 4.0mm wall thickness
- 15m/roll standard packing
- Passes stringent electrical tests
- Cost-effective manufacturing
描述
ZH-M35 Series is an insulated heat shrink tubing specially designed for busbar applications. Made of radiation cross-linked polyolefin with halogen-free formulation, it provides up to 35kV insulation strength for busbars below 24kV and other electrical equipment, emitting no toxic substances when burning, RoHS compliant.
Key Features:
- 2:1 high shrink ratio
- 35kV insulation rating
- Halogen-free, RoHS compliant
- 优异的阻燃性
- Carbon trace resistance
- Standard iron red color
- Wide size range (15/8-150/75mm)

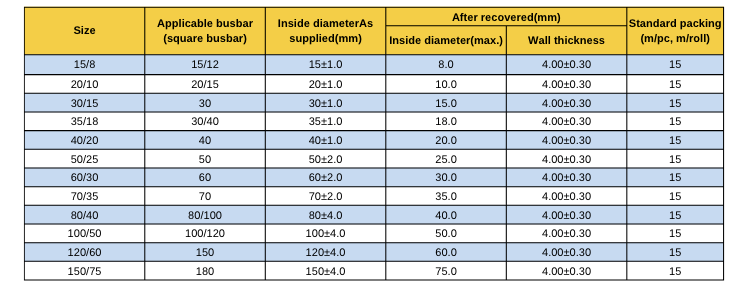

Size:
