ZH-PTFE-260
260°C PTFE Heat Shrink Tubing
It is a 260°C high-temperature PTFE heat shrink tubing, manufactured with polytetrafluoroethylene material for extreme thermal and chemical environments.
特点和优点
- Passes 225°C aging test for durability
- ≤0.3% water absorption for harsh conditions
- Ultra-low friction protects precision parts
- Complies with GJB7270-2011 standards
- Multiple AWG sizes available
- Cost-effective with fast delivery
描述
The ZH-TEFLON Series is a 260°C high-temperature PTFE heat shrink tubing, manufactured with polytetrafluoroethylene material for extreme thermal and chemical environments. Featuring ultra-thin wall transparent design with exceptional mechanical and electrical properties, certified to SAE AMS-DTL-23053/12 for aerospace, military and high-end applications.
Key Features:
- 260°C continuous rating (350°C peak)
- Ultra-thin wall (0.23-0.38mm) design
- VW-1 flame rating, UL224 certified
- 40kV/mm dielectric strength
- ≥35MPa tensile strength, ≥400% elongation
- Standard transparent color

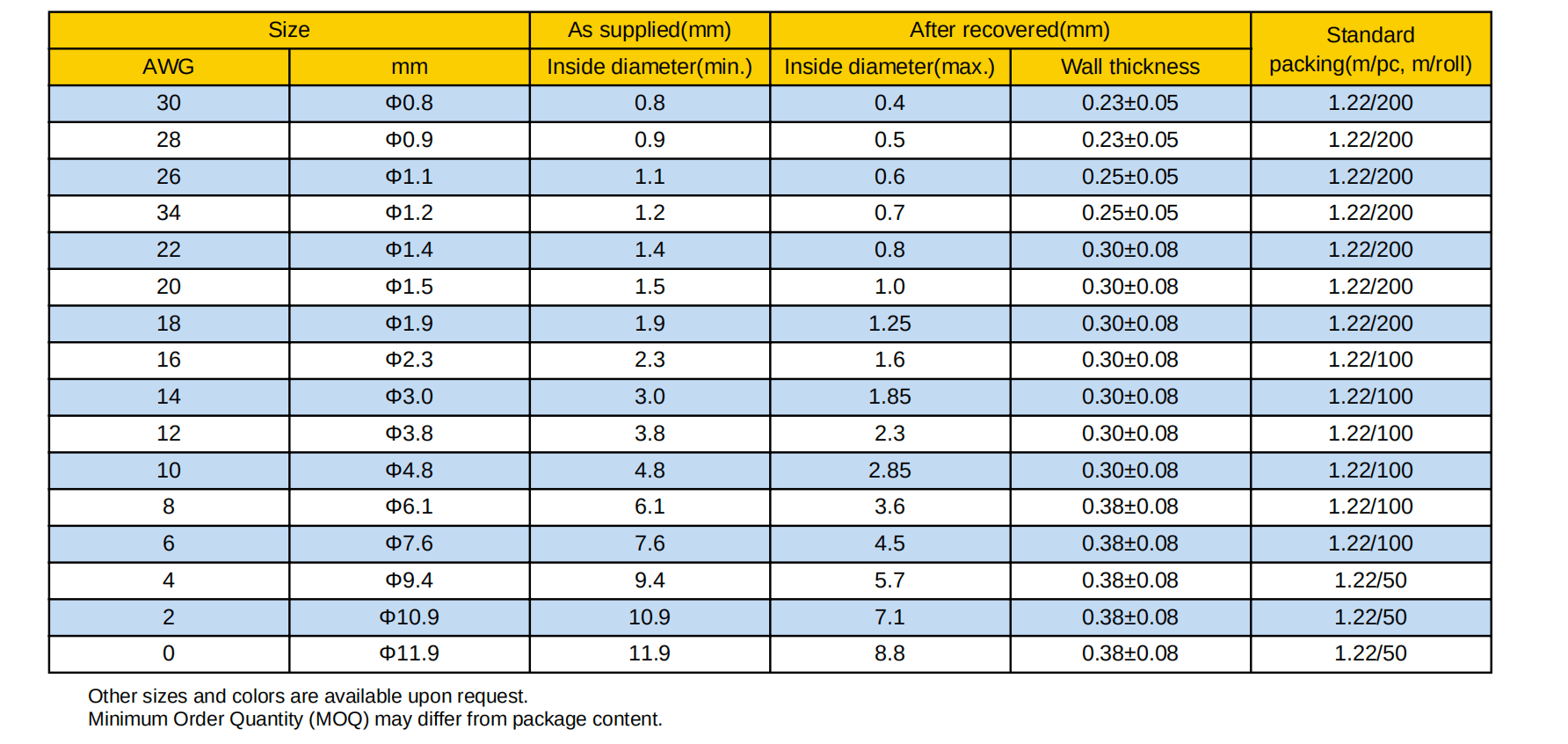

Size:
